VSG ENERGY SOLUTIONS
Ukrainian company implementing state-of-the-art international technologies in the fields of water treatment, energy efficiency, and critical infrastructure recovery.
We are the official partner of the Japanese company NIHON GENRYO, one of Asia’s leading manufacturers of water filtration systems, with over 80 years of experience.
Together, we are working to install MST (Mobile Siphon Tank) systems in communities that require rapid and reliable access to clean drinking water.
Насос для подачи реагентов
MST provides a stable supply of drinking water anywhere, anytime
30-year warranty on the filtration media.
Effective operation under severe water contamination conditions
Treatment capacity of up to 1,000 m³ per day
No filtration media replacement required
Unique Japanese sand filtration technology that guarantees consistent water quality and provides significant savings of resources
Our Mission
We aim to make these technologies accessible to Ukrainian cities and rural areas, healthcare facilities, schools, public institutions, and even private enterprises.At this moment, the first systems have already been installed in Kyiv and Odesa, at municipal water utilities supplying drinking water to local communities.
Japanese MST Technology – Mobile Siphon Tank
A modular water purification solution combining Japanese engineering, compact design and rapid installation.
Reliable Access to Clean Water
A perfect solution for communities without centralized water supply
Japanese Engineering and Quality
High-tech solutions from leading Japanese manufacturers of water filtration systems
Compact Design and Rapid Deployment
Easy to transport and install in a minimal amount of time
Operates in Any Conditions
Effective operation even in frontline areas and emergency zones.

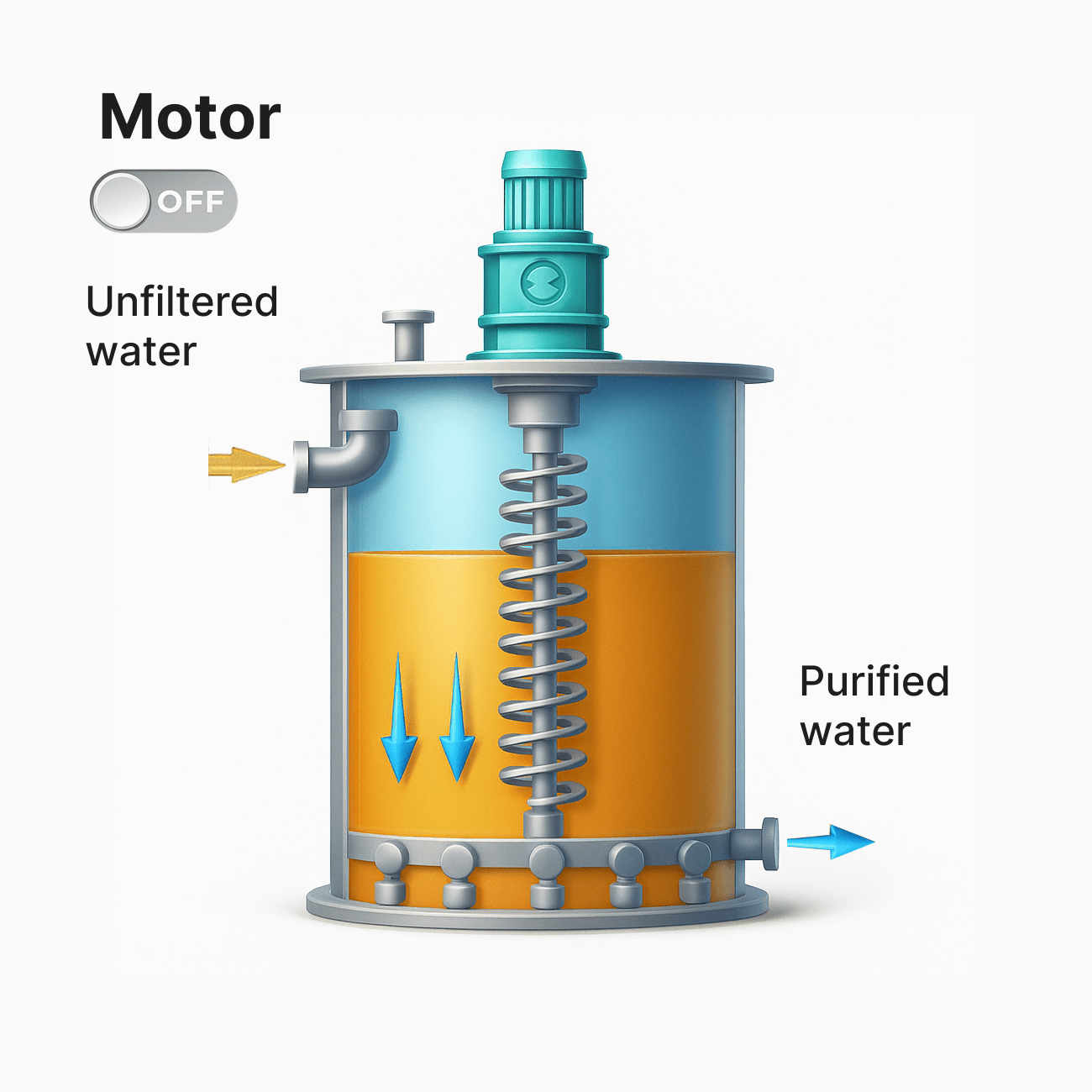

1. Filtration Process
Filtration happens under pressure in a downward flow, providing effective removal of contaminants and the supply of clean, safe water.

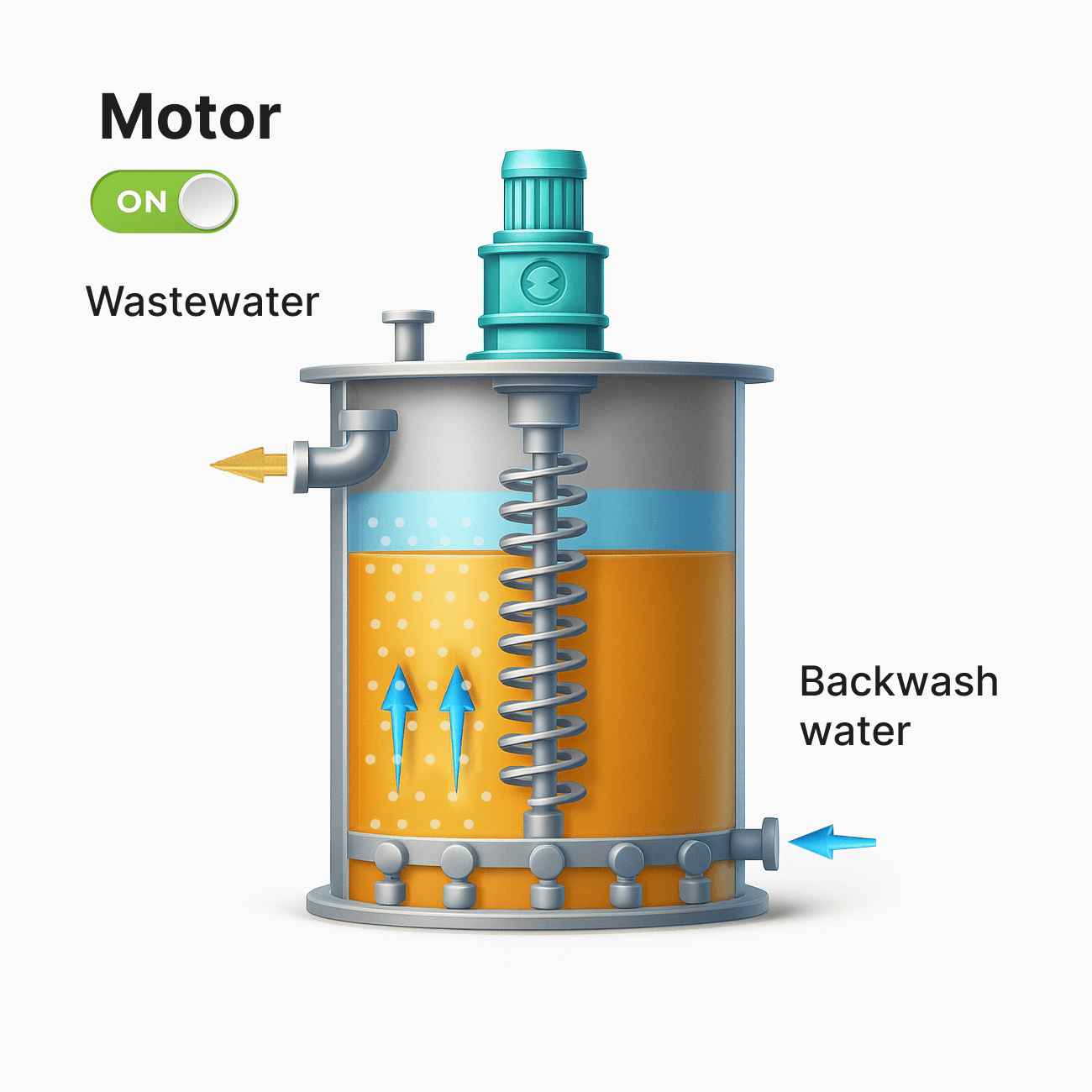

2. Backwashing
A brief backwash loosens the filtration media and prepares it for deep cleaning through the SIPHON WASHING process.

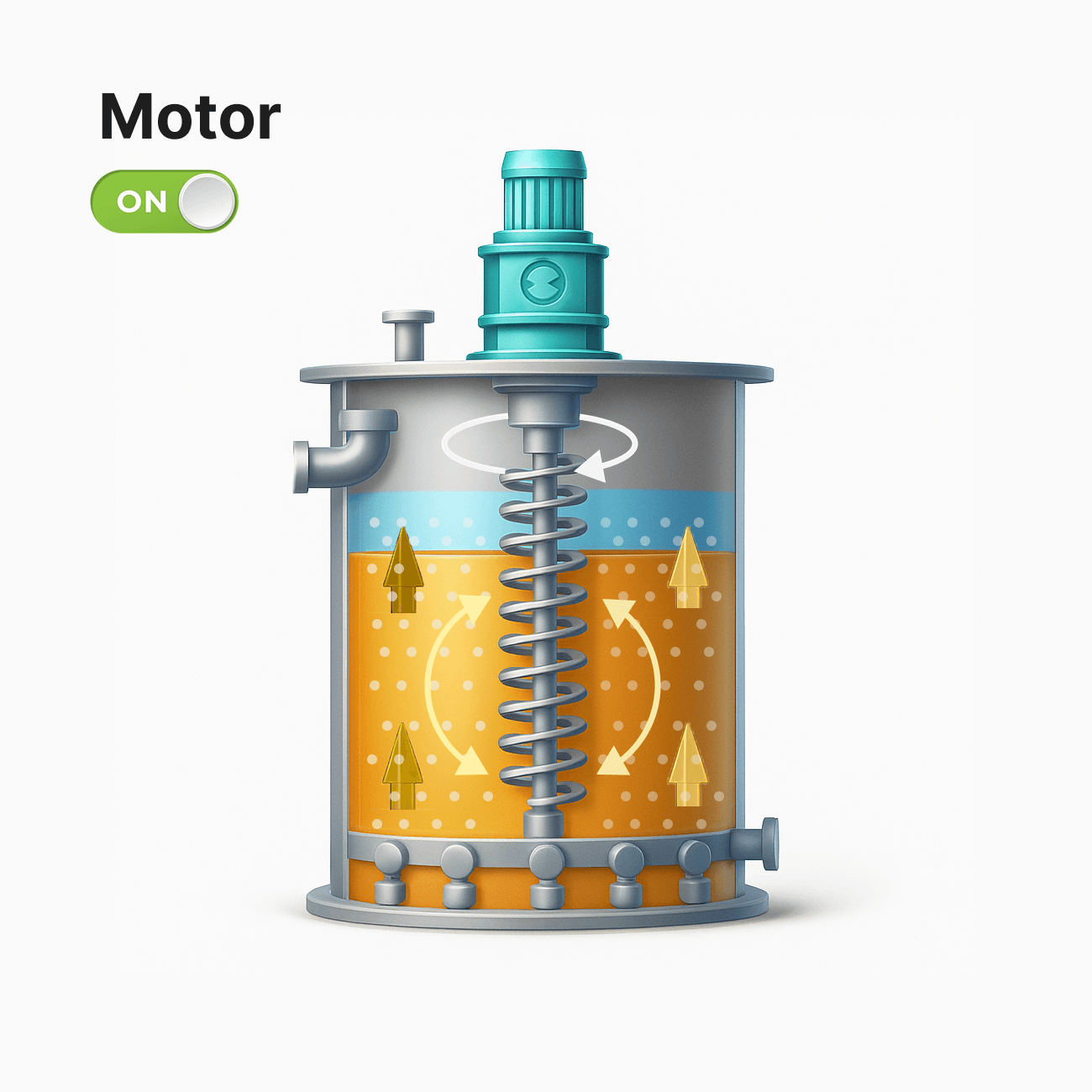

3. Siphon Washing
The filtration media is cleaned using buoyancy and the rotational movement of sand particles, lifting the media from bottom to top and removing built-up contaminants.

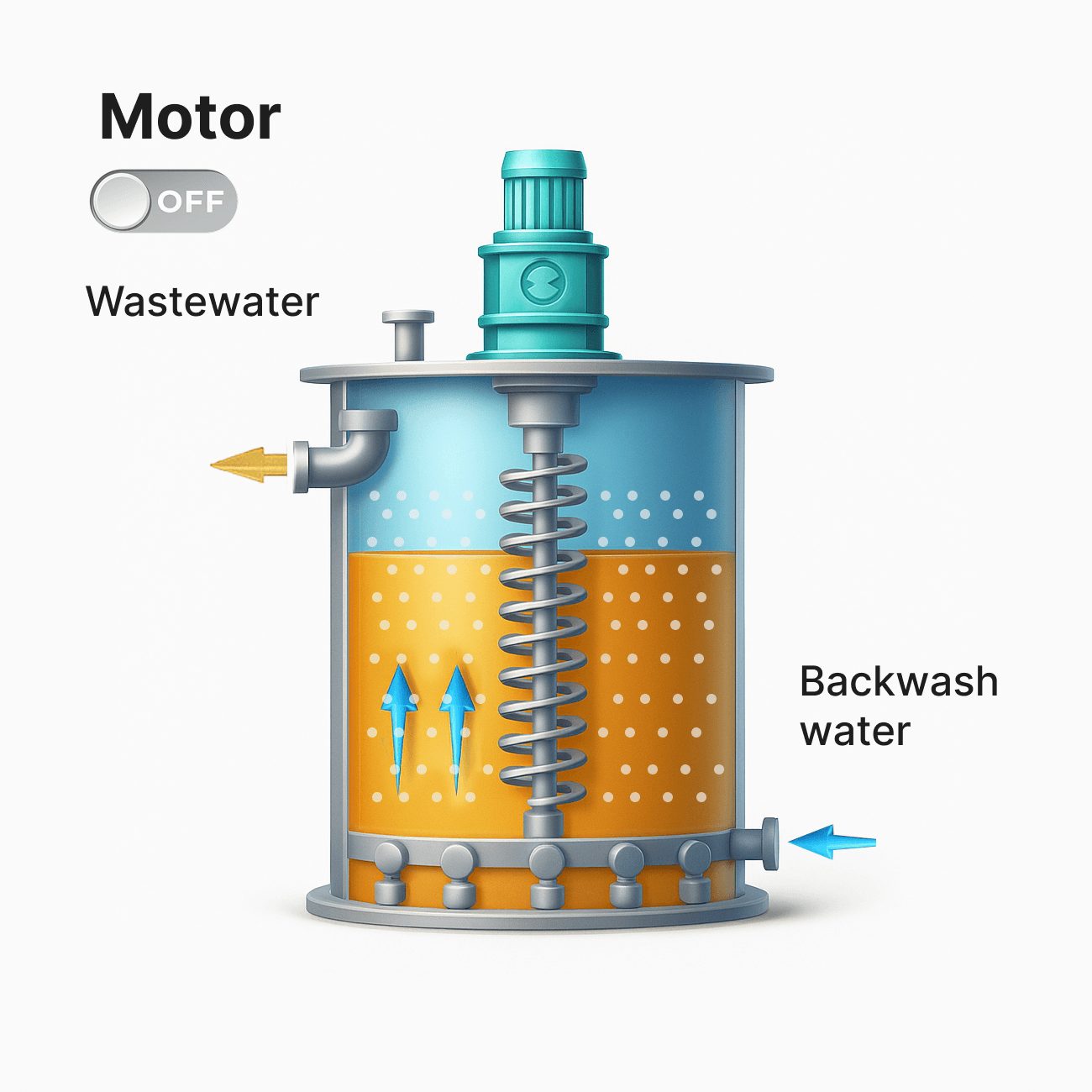

4. Final Backwashing
The final rinse removes residual sludge and used water, preparing the filtration media for further use.
Подати заявкуThe unique SIPHON WASHING technology allows for continuous filter cleaning without the need to replace the filtration media. This approach greatly lowers maintenance costs and keeps filtration quality high throughout the operational lifecycle.

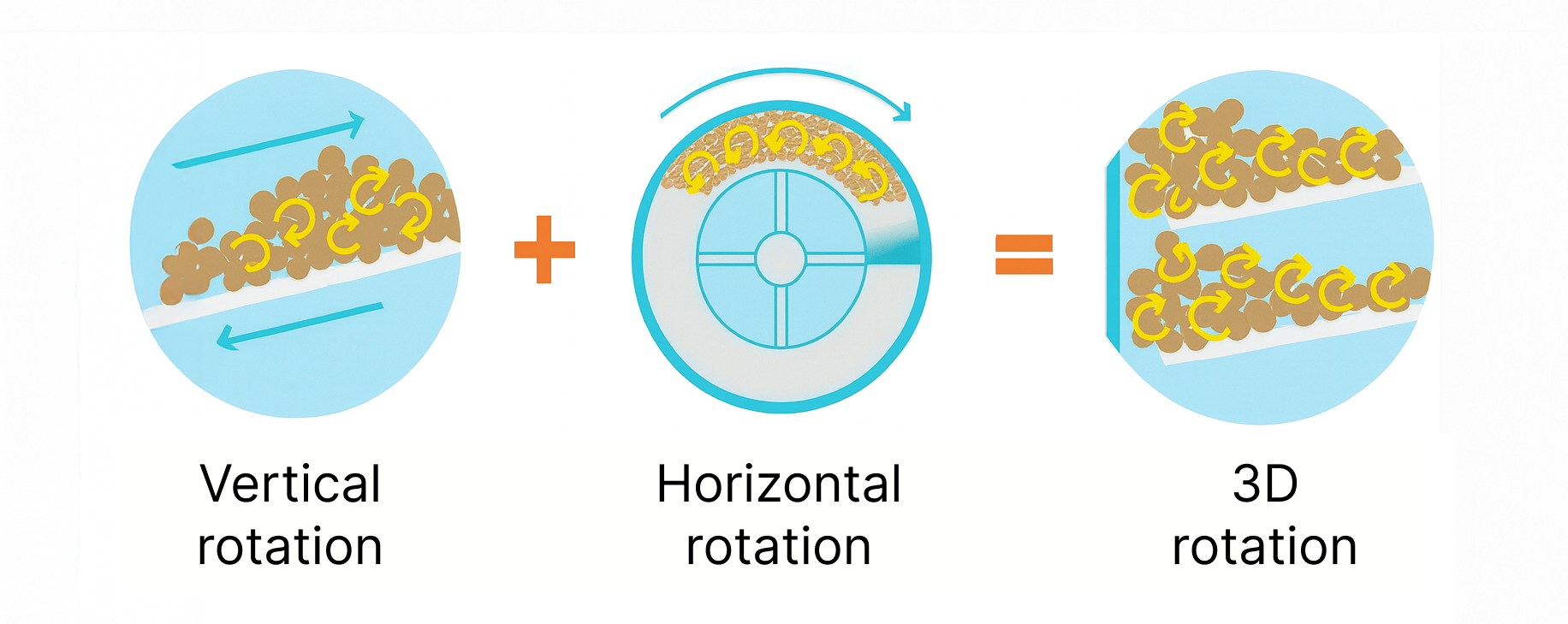

How SIPHON WASHING Works
SIPHON WASHING is based on the principle of cleaning filtration sand through controlled agitation and friction between sand particles. This process keeps the filtration media constantly clean and guarantees stable filtration.
Carefully selected sand particles with an effective size (ES) of 0.6 mm, high in uniformity and abrasion resistance, combined with high-performance Zebra Layer anthracite, provide up to 2.7 times higher filtration efficiency than conventional sand filters, leading to significant cost savings.
International Experience: Global MST Project Footprint
MST water treatment systems were developed by the Japanese company NIHON GENRYO and have been successfully operating for many years across the globe -from Southeast Asia to Europe. They are chosen wherever reliable, compact, and rapidly deployable solutions are needed to ensure access to clean water.
Thanks to its modular design, MST can be easily adapted a variety of water sources, such as groundwater, rivers, technical water, and even wastewater. Its versatility and performance are validated by numerous successful implementations worldwide.Today, MST systems with Siphon Washing technology are in operation in dozens of countries around the world.
Key Areas of Application
Humanitarian missions (Philippines, Vietnam, Laos) – providing drinking water to communities affected by floods
Industrial facilities, including Sony Corporation, Availus, and Sumitomo Osaka Cement – for water filtration prior to reverse osmosis or wastewater treatment
Municipal programs – modular water supply stations for rural communities and frontline areas
Vietnam
MST-700x3
Maritime university and student dormitories water supply.
Japan, Kawakita Village
MST-1600
Compact municipal water supply station.
Laos
MST-700
Flood response in Sekong Province: drinking water to 67,500 people.
Sony Corporation
ST-2000x2
Pre-treatment of water before reverse osmosis filtration
Yoshida WP Plant
ЗавоIndustrial facilityд
New water supply plant on the site of a previous facility destroyed by flooding.
Sumitomo Osaka
ST-1800
Wastewater treatment.
Philippine
MST-260
Provision of drinking water for a secondary school.
Ukraine, Odesa & Kyiv
MST-2300S
Municipal water supply projects with Kyivvodokanal.
